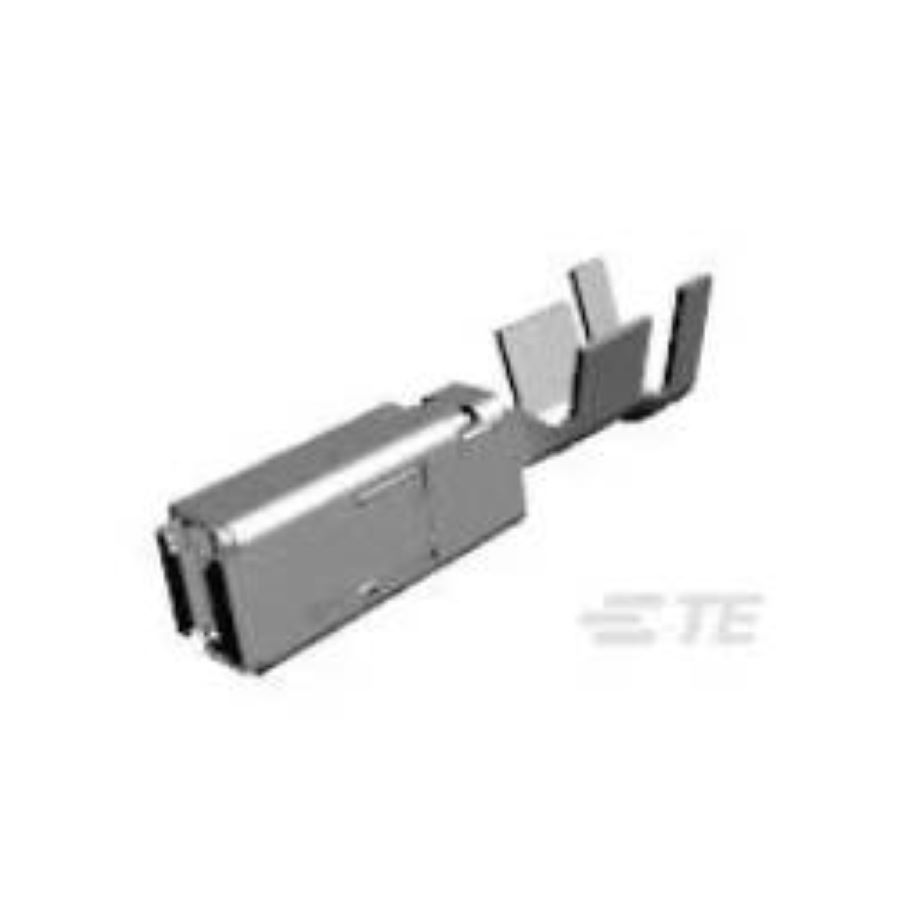

1241390-1
Manufacturer:
TE Connectivity
Mfr.Part #:
1241390-1
Datasheet:
Description:
Automotive Connectors Cable Female 17 AWG to 13 AWG
| Parameter | Value |
|---|---|
| Length | 19.5 mm |
| Termination | Crimp |
| Max Operating Temperature | 130 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Copper |
| Current Rating | 22 A |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Female |
| Shielding | Unshielded |
| ELV | Compliant |
| Connector Type | Connector, PCB, Signal |
| Wire/Cable Gauge | 17 AWG to 13 AWG |
| Insulation | |
| Wire Gauge (Max) | 17 AWG |
| Wire Gauge (Min) | 13 AWG |
| Insulation Diameter | 2.9972 mm |
| Mating Tab Width | 2.794 mm |
| Tab Thickness | 600 µm |
| Sealable | No |
| Wire Gauge Range | 17 AWG to 13 AWG |
Stock: 116802
Distributors
pcbx
pcbxUnit Price$0.37646
Ext.Price$0.37646
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.37646 | $0.37646 |
| 10 | $0.18823 | $1.88230 |
| 50 | $0.14479 | $7.23950 |
| 100 | $0.11138 | $11.13800 |
| 500 | $0.08568 | $42.84000 |
| 1000 | $0.06591 | $65.91000 |
| 3000 | $0.05070 | $152.10000 |
| 5000 | $0.04828 | $241.40000 |
| 10000 | $0.04597 | $459.70000 |
| 30000 | $0.04377 | $1313.10000 |
